The current web calculator for stopping powers of spectral fluence is a real time implemetation of the "SRIM Module.exe" (with an upper energy limit of 5 GeV/amu) included in SRIM 2013 code (SRIM Tutorials) - whose maximum available energy is 10 GeV/amu -, i.e., the used electronic stopping power tables are those provided by "SRIM Module.exe" code with a low energy limit of 1 eV.
EXAMPLE:
Copy and paste the data here to reproduce the following example.

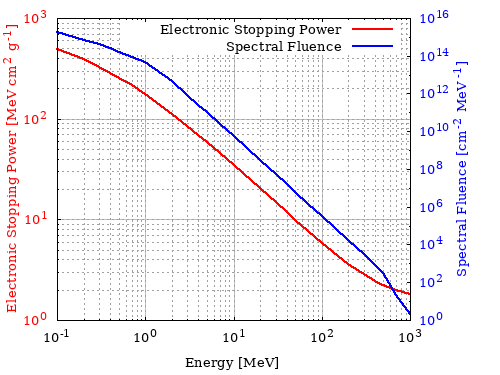

Electronic stopping power (red) in Silicon and protons spectral fluence (blue) assuming an orbit around Jupiter, at Europa altitude, during 1 year mission:
Spectral fluence data are calculated with JOREM Model implemented in SPENVIS assuming a 4π solid angle exposure.
NOTE:
Output table and graph include the electronic stopping power in units of Mev cm2/g (i.e., the mass electronic stopping power).
The lower energy limit is 1 eV
The higher energy limit is 5 GeV/nucleon
Target selection for the results obtained in the EXAMPLE section
Selection for Protons in Silicon:
Selection for Protons in GaAs:
Selection for Protons in Water Liquid:
In SRIM, gas targets are dealt differently from those solid. User can select the target as a gas only for following elemental targets: H, He, N, O, F, Ne, Cl, Ar, Kr, Xe, Rn.
FINAL REMARK:
In the present electronic stopping power to dose converter, the energy lost by the incoming particle is assumed to be fully absorbed by the medium - for instance, the medium is supposed to to be thick enough to fully absorb the kinetic energy of emitted delta rays - and the particle energy is almost constant while traversing the absorber.
