A relevant process - which causes permanent damage to the silicon bulk structure - is the so-called displacement damage (e.g., see Chapter 7 of [Leroy and Rancoita (2016)], see also [Consolandi et al. (2006), Leroy and Rancoita (2007), Boschini et al. (2011), Boschini et al. (2012)] and references therein). Displacement damage may be inflicted when a primary knocked-on atom (PKA) is generated. The interstitial atom and relative vacancy are termed Frenkel-pair (FP). In turn, the displaced atom may have sufficient energy to migrate inside the lattice and - by further collisions - can displace other atoms as in a collision cascade. This displacement process modifies the bulk characteristics of the device and causes its degradation. The total number of FPs can be estimated calculating the energy density deposited from displacement processes. In turn, this energy density is related to the non-ionizing energy loss (NIEL), i.e., the energy per unit path lost by the incident particle due to displacement processes.

For instance, in Chapter 2 and of [Leroy and Rancoita (2016)] (see also [Boschini et al. (2012)] and references therein), the differential cross section for electron–nucleus scattering was dealt to describe their interaction up to ultra high-energy and, in addition, it was accounting (above about 200 keV) for the effects due to the screening of Coulomb potentials, finite sizes and finite rest masses of target nuclei. In fact, it has to be remarked - as derived by Zeitler and Olsen ([Zeitler and Olsen (1956)]) - that spin and screening effects can be separately treated for small scattering angles; while at large angles (i.e., at large momentum transfer), the factorization is well suited under the condition that

(e.g., see [Zeitler and Olsen (1956), Idoeta and Legarda (1992)]). Zeitler and
Olsen suggested that for electron energies above 200 keV the overlap of spin
and screening effects is small for all elements and for all energies; for
lower energies the overlapping of the spin and screening effects may be
appreciable for heavy elements and large angles. Furthermore, to a first
approximation, the finite nuclear size effects can be accounted for by means of the
nuclear form factor (e.g., see Eqs. (2.262, 2.264, 2.265) of [Leroy and
Rancoita (2016)] and discussion in Sect. 2.4.2.1), for instance, the so called
exponential form factor (F_{exp}) expressed by Eq. (2.262) of [Leroy and Rancoita
(2016)].

The previously mentioned treatment allows one to obtain the nuclear stopping
power for electrons in materials. Furthermore, within such a framework, Boschini
and collaborators (2012) calculated the non-ionizing energy-loss using the Mott
differential cross section (MDCS), dσ_{sc,F,CoM}^{Mott}(T)∕dT dT, and its approximate
expression, i.e., the McKinley and Feshbach differential cross section (McFDCS),
dσ_{sc,F,CoM}^{McF }(T)∕dT, so that also the screened Coulomb fields, finite sizes and
rest masses of nuclei were taken into account. It has to be remarked that, in the
current treatment for the MDCS, Boschini and collaborators (2013) derived an
improved numerical approach and an interpolated expression (e.g., see
Sections 2.4.1–2.4.2 of [Leroy and Rancoita (2016)] and [Boschini et al.
(2013)]) for the cross-section. For instance, one finds that the NIEL in units of MeV/cm is derived
as:

| (1) |

or

| (2) |

where T is the kinetic energy transferred to the target nucleus, L(T) is
the fraction of T deposited by means of displacement processes. The
Lindhard partition function, L(T), can be approximated using the so-called
Norgett–Robintson–Torrens expression [e.g., [Jun (2001), Messenger et al. (2003)]
and/or Equations (7.20, 7.28) at pages 489 and 490, respectively, of [Leroy and
Rancoita (2007)] (see also references therein)]. T_{de} = T L(T) is the so-called
damage energy, i.e., the energy deposited by a recoil nucleus with kinetic energy
T via displacement damages inside the medium. In Eqs. (1, 2) the integral is
computed from the minimum energy T_{d} - the so-called threshold energy for
displacement, i.e., that energy necessary to displace the atom from its lattice
position - up to the maximum energy T_{max} that can be transferred during a single
collision process. For instance, T_{d} is about 21 eV in silicon (e.g., see Table 1 in
[Jun, Xapsos, Messenger, Burke, Walters, Summers and Jordan (2003)] and
references therein) requiring electrons with kinetic energies above ≈ 220 keV
[e.g., see Equation (7.51) at page 501 of [Leroy and Rancoita (2007)]].

As known, the large momentum transfers (corresponding to large scattering
angles) are disfavored by effects due to the finite nuclear size accounted for

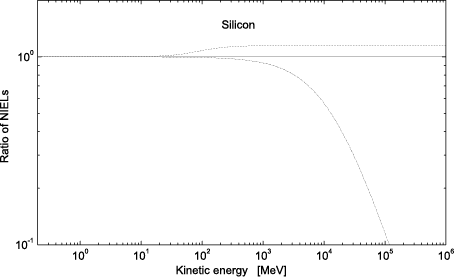

by the nuclear form factor. For instance, in Fig. 1 the ratios of NIELs
for electrons in silicon are shown as a function of the kinetic energy of
electrons from 220 keV up to 1 TeV. These ratios are the NIELs calculated
neglecting i) nuclear size effects (i.e., for ^{2} = 1) and ii) effects due
to the finite rest mass of the target nucleus both divided by that one
(Fig. 2) obtained using Eq. (2). Above ≈ 10 MeV, the NIEL is ≈ 20%
larger assuming ^{2} = 1 and, in addition, above (100–200) MeV the
calculated NIEL largely decreases when the effects of nuclear rest mass
are not accounted for (for a detailed discussion, for instance, one may
see Section 7.1.1.8 in [Leroy and Rancoita (2007)]). Finally, it has to be
remarked that similar results can be obtained neglecting the screening factor:
already at energies lower that 200 keV, T_{d} ≈ 21 eV is much larger than
T_{max}A_{s}.

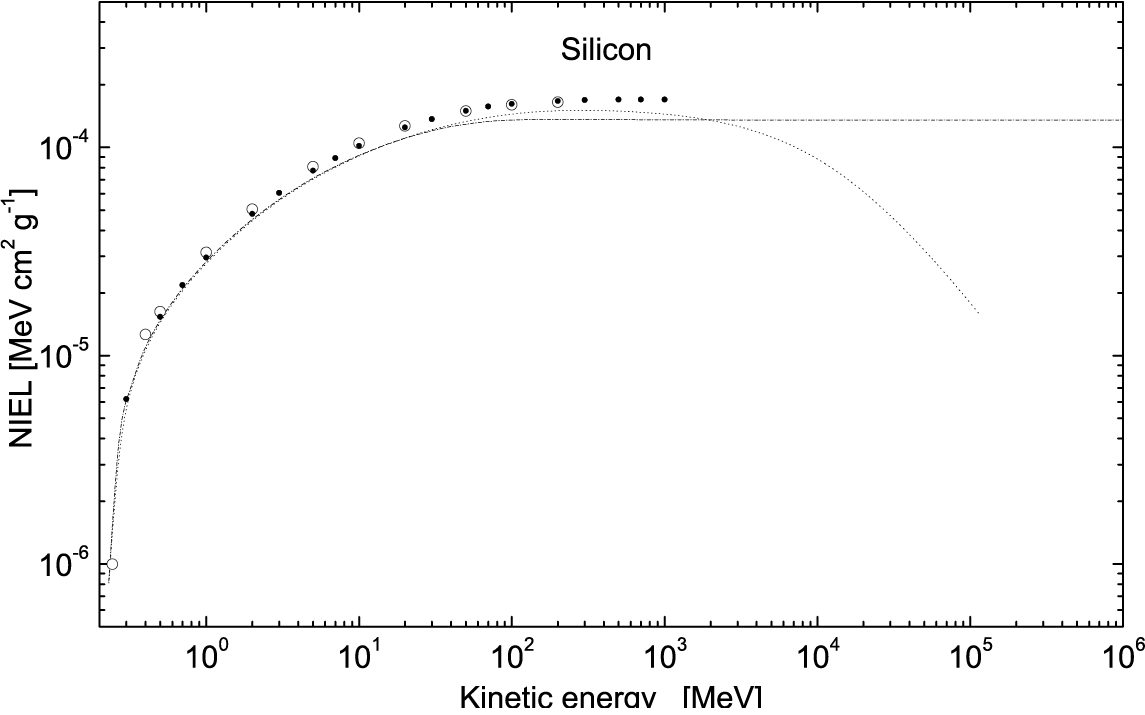

In Fig. 2, for T_{d} = 21 eV the non-ionizing energy loss (in MeV cm^{2} g^{-1})
calculated using Eq. (2) in silicon is shown (dashed and dotted curve) as a
function of the kinetic energy from 220 keV up to 1 TeV and is compared
with that one tabulated by Messenger et al.[Messenger et al. (1999)] (Jun
et al.[Jun, Kim and Evans (2009)]) from ≈ 240 keV up to 200 MeV
(1 GeV). For the laboratory system, Messenger et al.[Messenger et al. (1999)]
used the approximate MDCS found by Doggett-Spencer[Doggett and
Spencer (1956))] and Lindhard’s partition function numerically obtained by
Doran[Doran (1972] without accounting for the effects due to screened
Coulomb potential (i.e., 𝔉^{2} = 1), finite size (i.e., F^{2} = 1) and finite rest
mass of the silicon target; while, Jun et al.[Jun, Kim and Evans (2009)]
followed the approach discussed in [Lijian, Quing and Zhengming (1995)] to
determine an approximate expression of the MDCS and dealt the Lindhard
partition function using the modified Norgett–Robintson–Torrens expression
found^{2}
by Akkerman and Barak (2006). The dotted curve is obtained replacing
dσ_{sc,F,CoM}^{McF }(T)∕dT with dσ^{McF }(T)∕dT [ i.e., that one not accounting for
accounting for the effects due to the screened Coulomb potential, finite
size and rest mass of recoil silicon] in Eq. (2): at 100 MeV–1 GeV, the
agreement between the latter calculation and values from Messenger et
al.[Messenger et al. (1999)] and Jun et al.[Jun, Kim and Evans (2009)] is within
several percents. It has to be remarked (see also Fig. 1) that i) above
(100–200) MeV effects due to screened Coulomb potentials, finite sizes and finite
rest masses of nuclei have to be taken into account and ii) for energies
between ≈ 100 MeV and ≈ 1 GeV the effects of neglecting the nuclear
form factor and finite rest mass of nuclei almost compensate each other.
